End-to-End Site Services & Assembly Management

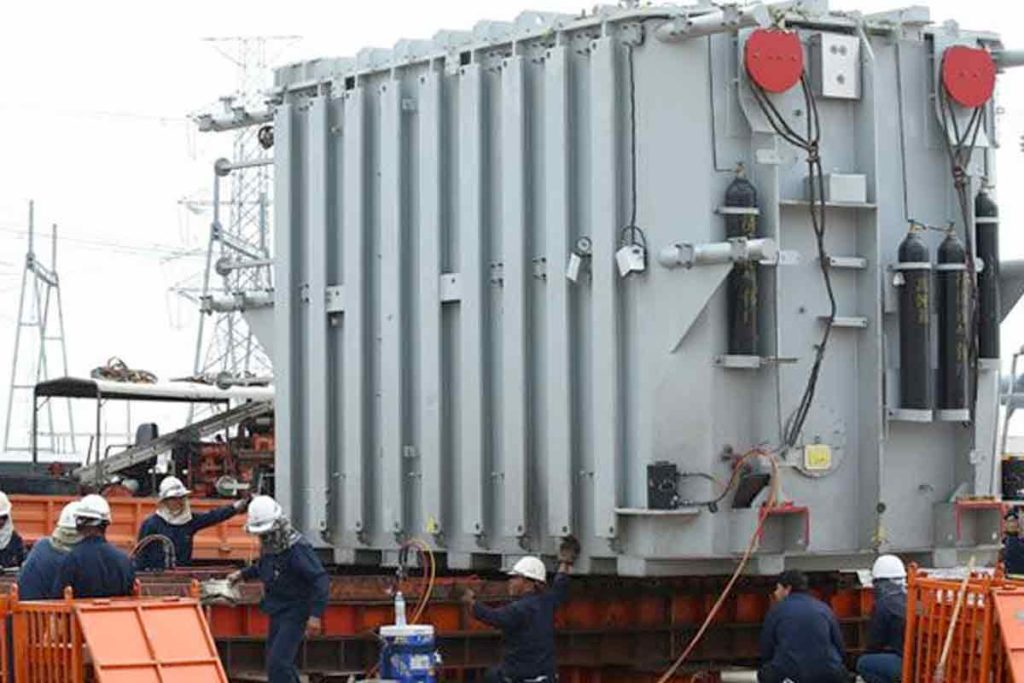

Proper field installation is critical to extending transformer operational lifespan and preventing premature insulation failure. EUROGULF’s field teams manage every stage of transformer deployment—from initial transport route audits and offloading planning to final energization acceptance.
- Pre-Delivery Site Audit: Comprehensive site access surveys, civil foundation inspections, and detailed rigging/offloading plan development.
- Safety & Compliance Documentation: Site-specific Safe Work Method Statements (SWMS), Risk Assessment Method Statements (RAMS), and HSE compliance protocols.
- Mechanical Assembly: Precision mounting of bushings, radiators, conservator tanks, explosion vents, and associated control cabinets.
- Oil Processing & Vacuum Filling: Deep vacuum evacuation, hot oil circulation, and online moisture removal to maintain strict dielectric strength.
- Final Practical Completion Audit: Comprehensive site documentation sign-off with customer engineering representatives prior to energization.
Pre-Commissioning Diagnostic Testing Scope
To verify factory acceptance test (FAT) results and ensure zero transportation damage, EUROGULF engineers perform advanced non-destructive diagnostic electrical tests on-site using high-precision calibrated equipment.
Transformer Turns Ratio (TTR) & Phase Vector
Verification of turns ratio accuracy across all tap positions and validation of phase vector displacement to confirm internal winding integrity.
Winding Resistance Measurement
High-precision DC winding resistance measurements across all phases and tap steps to detect loose connections, tap changer contact degradation, or shorted turns.
Insulation Resistance (IR) & Polarization Index (PI)
Megger insulation evaluation between windings and ground, establishing baseline PI and Absorption Ratio metrics for insulation dryness.
Dielectric Dissipation Factor (Tan Delta / DDF)
Precision measurement of capacitance and power factor (Tan δ) for transformer windings and high-voltage bushings to identify insulation moisture contamination.
Sweep Frequency Response Analysis (SFRA)
Advanced frequency response profiling to detect sub-millimeter mechanical movement, core displacement, or winding deformation caused during transit.
Transformer Oil Quality & DGA Diagnostics
On-site fluid sampling for breakdown voltage (BDV), moisture content (PPM), interfacial tension, and Dissolved Gas Analysis (DGA) to ensure baseline oil purity.
Certified Field Specialists
Supervised by factory-trained high-voltage engineers with decades of field deployment experience across Middle Eastern, African, and Asian utility markets.
Specialized Equipment
Mobilization of state-of-the-art oil filtration plants, high-vacuum pumps, and calibrated Omicron / Megger testing instrument suites.
International Compliance
All site procedures, safety protocols, and testing documentation adhere strictly to IEC 60076, IEEE C57, and CIGRE field recommendation standards.
Approved by Global Utilities & EPCs
EUROGULF’s site installation and testing protocols meet the stringent requirements of regional and international utility authorities including DEWA, SEWA, FEWA, AADC, and major global EPC contractors. Our rigorous documentation provides EPC project managers with complete audit trails and baseline diagnostic records required for long-term warranty and insurance validation.
Require On-Site Transformer Installation or Site Testing Support?
Consult with EUROGULF’s field service engineering team for custom installation schedules, pre-commissioning test protocols, or global site supervision inquiries.
