3D Solid Modeling & Spatial Planning
Full 3D parametric design ensures precise spatial integration, interference checking, mass balance optimization, and customized bushing/terminal box orientations to match client substations seamlessly.
State-of-the-Art Engineering
PRECISION TRANSFORMER ENGINEERING & CAD/FEA MODELING
At EUROGULF Transformers, electrical and mechanical design optimization forms the backbone of operational reliability and operational lifetime. To guarantee continuous power delivery under severe regional grid fluctuations and extreme tropical/desert ambient conditions, our engineering division utilizes advanced tender optimization platforms, custom calculation scripts, and 3D Finite Element Analysis (FEA).
Every custom transformer rating up to 132 kV class is individually simulated to ensure dielectric impulse withstand, transient surge voltage distribution, mechanical short-circuit force resilience, vacuum withstand, and optimum thermal dissipation.
Core Technical Benchmarks
- Voltage Ratings: Custom engineering compliant up to 132kV class.
- Advanced FEA Modeling: Precise electromagnetic flux leakage and dielectric stress mapping.
- Thermal Optimization: CFD thermal fluid modeling to eliminate hot-spots and extend insulation lifetime.
- Short-Circuit Withstand: Electrodynamic force verification compliant with IEC 60076-5 & IEEE standards.
- Harsh Climate Adaptation: Engineered for continuous full load in ambient temperatures up to +55°C.
Comprehensive Engineering Capabilities
ADVANCED DESIGN METHODOLOGIES
Electromagnetic & Dielectric Analysis
Advanced calculation of electric field strength prevents localized dielectric breakdown. Transient voltage distribution modeling protects windings against severe lightning surges and switching impulses.
Thermal & Hydraulic Simulation
Detailed oil flow channel modeling optimizes heat dissipation across ONAN, ONAF, OFAF, and ODAF cooling systems, ensuring compliant top oil and hot-spot temperature rises under continuous full load.
Short-Circuit Dynamic Strength
Rigorous mechanical withstand calculations simulate radial clamping pressure, axial forces, and core clamping stability under transient grid fault conditions to guarantee structural integrity.
Digital Twin & Engineering Visualization
3D SOLID MODELING & SIMULATION INSIGHTS

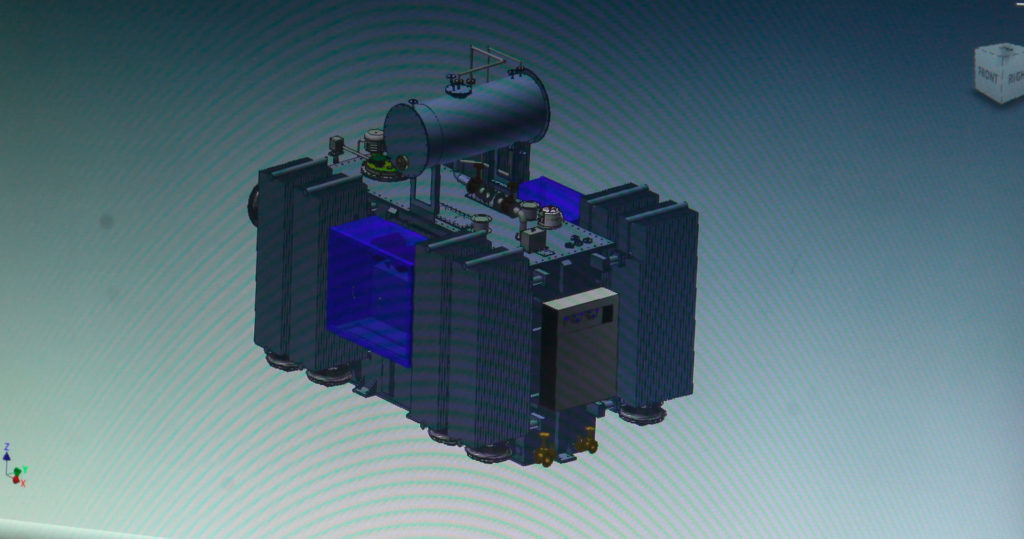

3D Assembly & Structural Integration
Complete structural visualization allowing accurate verification of tank pressure withstand, lifting lug stress distribution, and external dimension fitting.
Electromagnetic Flux Distribution
2D and 3D finite element flux calculations to minimize stray losses in structural steel tanks, tie plates, and core clamp structures.

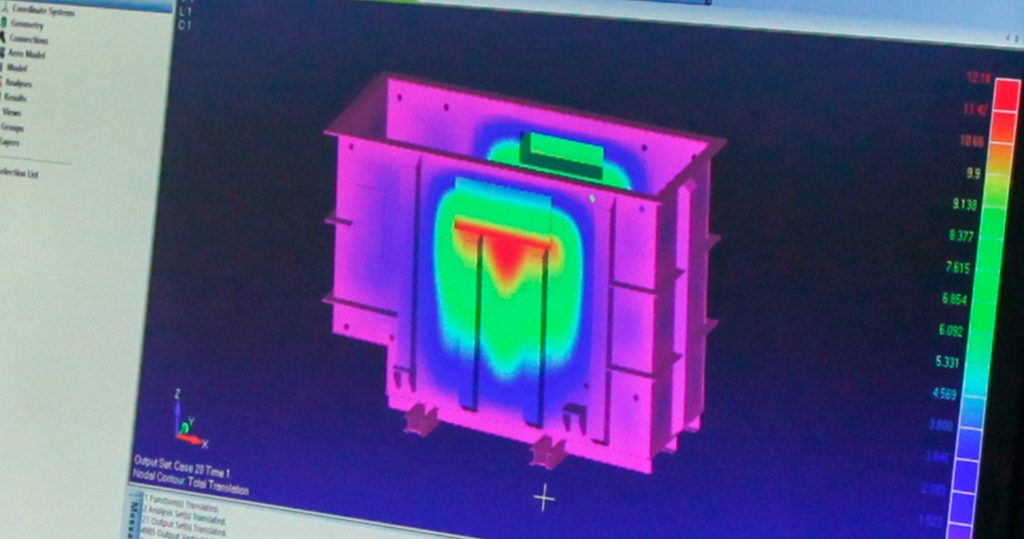

Impulse Voltage & Stress Analysis
Transient electrostatic voltage mapping along transformer windings to determine optimal insulation distances and barrier arrangements.
Thermal Duct Optimization
Hydraulic analysis of transformer oil duct geometry for efficient natural and forced convection cooling under extreme Middle East ambient loads.
Collaborative Engineering
DESIGN REVIEWS & CLIENT VERIFICATION
EUROGULF prioritizes technical transparency with utility operators, EPC contractors, and industrial procurement clients. Engineering design reviews can be conducted collaboratively at our 100,000 sq ft manufacturing facility in Sharjah Free Zone, UAE, or directly at client engineering headquarters globally.

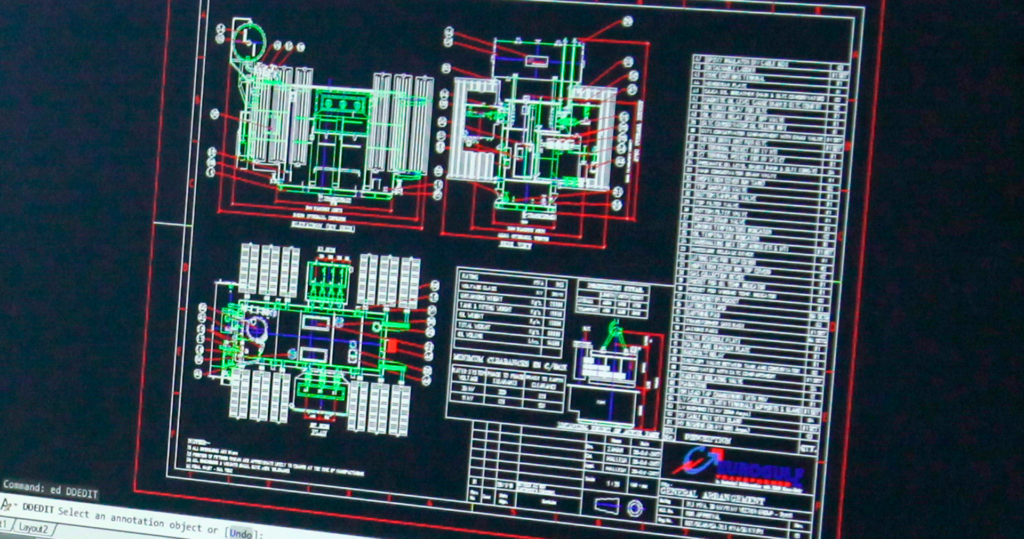

During review phases, comprehensive technical dossiers including 3D General Arrangement (GA) drawings, thermal calculation sheets, short-circuit withstand calculations, and dielectric impulse stress reports are submitted for formal client sign-off prior to production.
Engineering Compliance Matrix
| Design Parameter | Specification / Capability |
|---|---|
| Voltage Ratings | Compliant up to 132 kV Class |
| Design Standards | IEC 60076, IEEE C57, BS 171, NEMA ST-20 |
| Ambient Temperature Range | Up to +55°C continuous operation (Desert Environment) |
| Seismic & Wind Loading | Calculated to UBC / IBC / IEEE 693 Standards |
| Insulation System | High-purity thermally upgraded kraft paper & mineral oil / synthetic ester |
| Type Test Accreditation | Independently certified by KEMA (Netherlands) & CESI (Italy) |
NEED CUSTOM TRANSFORMER ENGINEERING SOLUTIONS?
Consult with our senior transformer design engineers for tender specifications, custom dimensions, or high-voltage applications.
