Pole-Mounted Distribution Transformers
Ideal for rural electrifications, overhead distribution lines, and decentralized power drop points. Compact lightweight single-phase and three-phase units engineered to withstand severe atmospheric stresses.

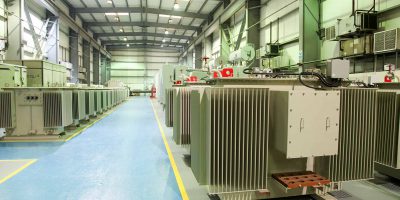

State-of-the-Art UAE Manufacturing
Heavy-Duty Distribution Transformers for Global Utilities
EUROGULF Transformers manufactures premium-grade oil-immersed and dry-type distribution transformers (up to 36 kV class, 5000 kVA rating) at our 100,000 sq ft facility in Hamriyah Free Zone, Sharjah, UAE.
Designed to serve electrical distribution utilities, EPC contractors, renewable power projects, and industrial heavy complexes worldwide, our distribution transformers convert high voltage to functional low voltage with minimal load losses and exceptional thermal endurance.
Every unit undergoes strict quality assurance protocols adhering to ISO 9001, ISO 14001, and ISO 45001 standards. Built to withstand tropical climates, desert environments, and high-ambient temperature extremes up to 55°C, EUROGULF transformers guarantee low total cost of ownership and decades of operational safety.
B2B Technical Data Sheet
Key Technical Capabilities & Specifications
| Technical Parameters | Standard Range & Options |
|---|---|
| Power Capacity Rating | 50 kVA up to 5000 kVA (Custom ratings available upon request) |
| Primary / System Voltage Class | 11 kV, 22 kV, 33 kV, 36 kV (50 Hz / 60 Hz) |
| Secondary / Low Voltage Output | 400V / 230V, 415V, 433V, or custom secondary step-down configurations |
| Cooling Method | ONAN (Oil Natural Air Natural) / ONAF / KNAN (Biodegradable Synthetic Ester Fluid) |
| Vector Group Connections | Dyn11, Dyn5, Yyn0, or custom phase angle requirements |
| Insulation Class & Fluid | Class A Mineral Transformer Oil (IEC 60296) or High Fire Point Ester Liquid |
| Enclosure & Tank Design | Hermetically Sealed (Corrugated / Radiator) or Conservator with Silica Gel Breather |
| Winding Conductor Material | High-Conductivity Electrolytic Copper or Premium Grade Electrical Aluminum |
| Standard Compliance | IEC 60076, IEEE C57.12, BS 171, ANSI, NEMA, EN standards |
Versatile Engineering Configurations
Engineered Configurations for Every Network

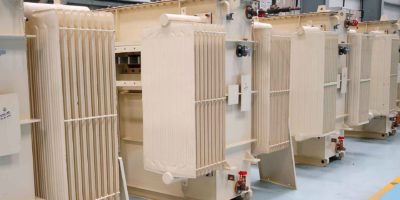

Ground-Mounted & Pad-Mounted Units
Robustly housed in tamper-resistant, weatherproof steel enclosures. Perfect for urban utility distribution grids, commercial centers, housing developments, and outdoor industrial substations.
Eco-Friendly & Dry-Type Options
Utilizing fire-retardant, self-extinguishing cast resin designs or ester-fluid filling for installations inside sensitive high-rise buildings, underground facilities, and environmentally protected areas.
Proven Industry Reliability
KEMA & CESI Type-Tested Quality Control
EUROGULF Transformers maintains a dedicated High-Voltage Testing Laboratory. All distribution transformers pass strict routine testing before dispatch, with design families independently type-tested and certified by internationally accredited test houses: KEMA (Netherlands) and CESI (Italy).

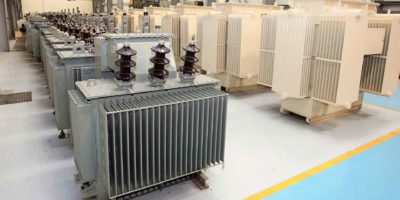

Comprehensive Routine Testing
Winding resistance, voltage ratio, phase displacement vector verification, load losses, no-load losses, and separate-source AC withstand tests.
Type & Special Test Validation
Short-circuit withstand performance, lightning impulse tests, temperature rise measurements, and acoustic sound level testing according to IEC 60076.
Require Technical Specs or Procurement Pricing?
Consult with our transformer engineering specialists to customize distribution transformers for your utility, EPC, or commercial infrastructure project.
