Engineered for Heavy-Duty Utility & Industrial Infrastructure
EUROGULF Transformers manufactures standard and custom-engineered Package & Unit Substations up to 36 kV class in our 100,000 sq ft state-of-the-art facility located in Hamriyah Free Zone, Sharjah, UAE. Built to meet stringent regional and international energy standards, our substations form a critical link in medium-voltage electrical distribution networks worldwide.
Designed specifically for underground power reticulation networks in urban, industrial, commercial, and utility environments, EUROGULF substations combine high-voltage switchgear (Ring Main Units), oil-immersed or dry-type step-down distribution transformers, and low-voltage switchboards within a unified, fully enclosed compartment housing. Factory-assembled and tested prior to export, our substations eliminate site integration risks, optimize spatial footprints, and simplify field installation.
Integrated Factory-Assembled Compartments

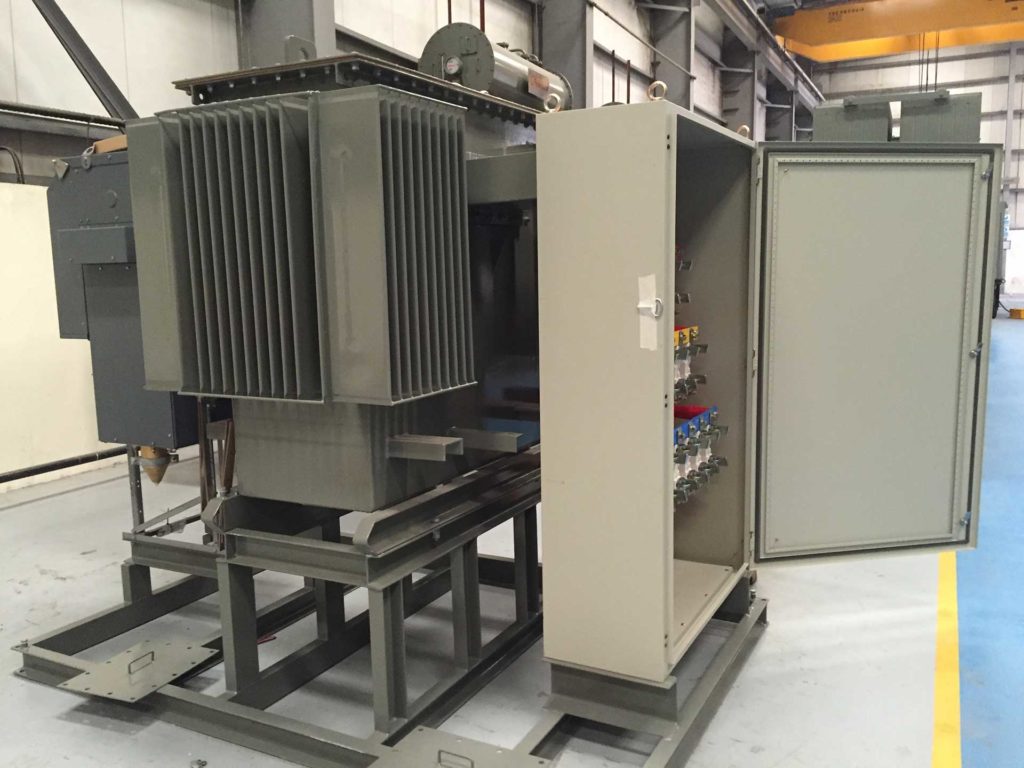

Each EUROGULF Package Substation is structured into three thermally segregated, metal-partitioned compartments designed to maximize operational safety, maintenance convenience, and environmental protection:
- High Voltage Compartment: Outfitted with SF6-insulated or Vacuum Ring Main Units (RMU) featuring breaker/switch-fuse combinations, pressure-relief safety vents, and interlocking mechanisms.
- Transformer Compartment: Houses hermetically sealed oil-immersed distribution transformers or cast resin dry-type transformers engineered for low-loss, high-efficiency operation.
- Low Voltage Compartment: Configured with high-breaking-capacity circuit breakers (ACB/MCCB), busbars, metering instruments, power factor correction, and outgoing feeder protection.
Key Engineering Advantages
Internal Arc Tested
Designed and type-tested to withstand internal arc faults (IAC classification) in accordance with IEC 62271-202, ensuring maximum safety for operating personnel and public surroundings.
Harsh Environment Ready

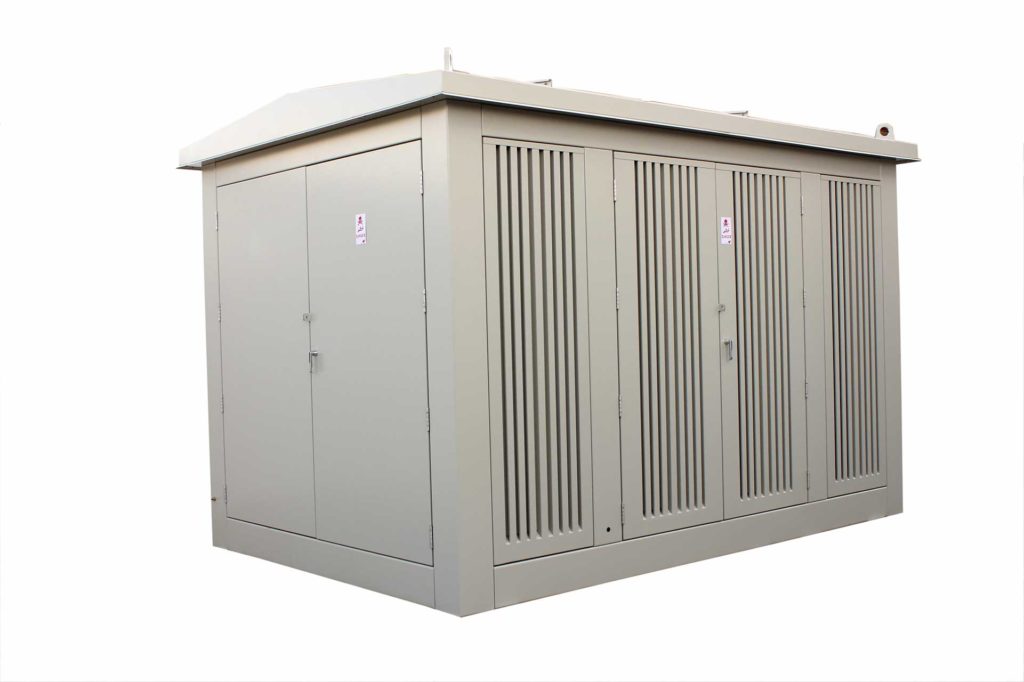

Enclosures built with Cor-Ten steel, electro-galvanized sheet, or Glass Reinforced Concrete (GRC) rated IP34 to IP54 for extreme ambient desert heat (+55°C) and corrosive coastal humidity.
Plug-and-Play Installation
Fully wired, inter-connected, and rigorously FAT-tested prior to dispatch. Minimizes civil works and dramatically reduces site commissioning timelines for procurement contractors.
Eco-Efficient Operation
Utilizes energy-efficient low-loss transformer cores (CRGO steel), environmentally friendly dielectric fluids (biodegradable synthetic esters available), and low acoustic footprint design.
Technical Specifications & Ratings
| Technical Parameter | Standard Specifications & Range |
|---|---|
| Rated High Voltage (HV) Class | Up to 36 kV (11 kV, 22 kV, 33 kV Standard Operating Ratings) |
| Rated Low Voltage (LV) Class | 400 V, 415 V, 433 V, 690 V (Customizable per regional grid requirements) |
| Transformer Power Capacity | 100 kVA to 3150 kVA (Oil-Immersed ONAN/KNAN or Cast Resin Dry Type) |
| Frequency & Phase | 50 Hz / 60 Hz | 3 Phase |
| Design & Testing Standards | IEC 62271-202, IEC 60076, IEEE C57, BS EN standards, NEMA, ANSI |
| Enclosure Construction | 2mm+ Electro-Galvanized Steel, Stainless Steel, Aluminum, or GRC |
| Degree of Protection (IP Rating) | HV & LV Compartments: IP43 / IP54 | Transformer Chamber: IP34 / IP44 |
| Internal Arc Classification (IAC) | AB 20kA 1s / 20kA 0.5s per IEC 62271-202 criteria |
| Cooling System | Natural Air Convection (AN) / Forced Ventilation (AF) with thermostat control |
Certified Reliability & International Compliance
EUROGULF Transformers maintains an unyielding commitment to manufacturing excellence and product reliability. Overseas project managers and power engineers benefit from full transparency and third-party certified verification.
KEMA & CESI Type-Tested
Our substation designs and transformer ratings undergo third-party short-circuit, temperature rise, and impulse withstand testing at internationally accredited laboratories (KEMA Netherlands & CESI Italy).
ISO Integrated Management
Certified under ISO 9001:2015 (Quality Management), ISO 14001:2015 (Environmental Management), and ISO 45001:2018 (Occupational Health & Safety), guaranteeing strict process controls from raw material selection to final delivery.
Rigorous FAT Protocols
100% of manufactured package substations undergo comprehensive Factory Acceptance Testing (FAT), including routine dielectric insulation tests, voltage ratio measurements, winding resistance, and mechanical operational checks.
Request Technical Specifications or Tender Quotation
Consult with EUROGULF transformer engineers to customize package substation configurations, obtain dimensional drawings, or receive immediate B2B pricing for your utility and industrial distribution projects.
